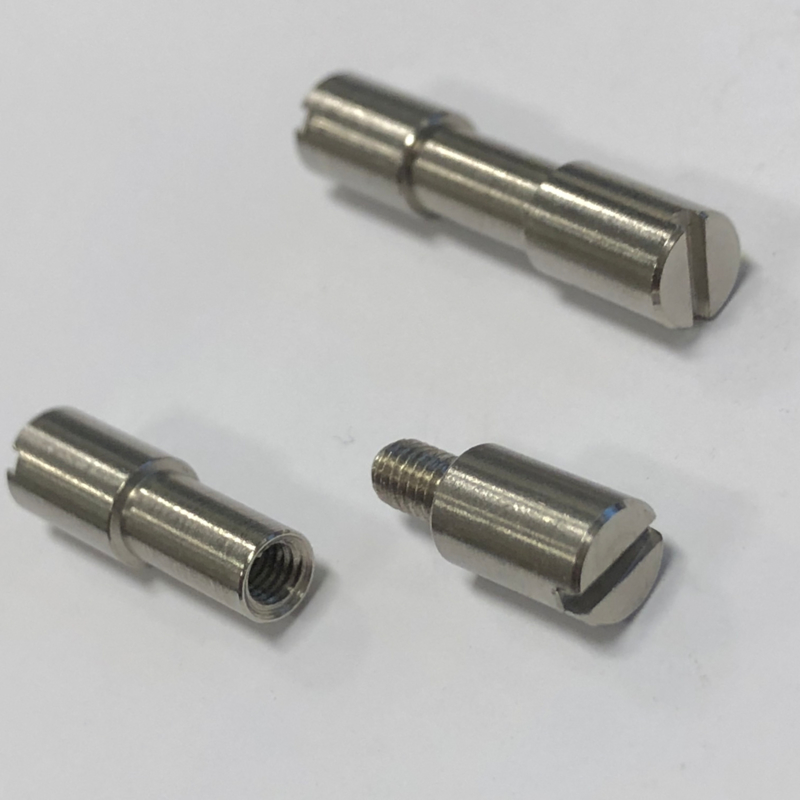

Corby bolt (Corby Style Bolt) -RVS- 5mm x 4mm
Corby Style Bolts made of rust-resistant steel
for attaching a handle / shell part to the blade.
- Total length (fully screwed together): 23.4 mm (maximum 26.5 mm)
- Length of the schaft part: 15.6 mm
- Length of threaded part: 12.60 mm
- Diameter (measured on shoulder): 4.98 mm
- Diameter (measured on the shaft): 3.95 mm
Use these Corby style bolts to connect handles to a knife tang.
For a full tang knife:
You drill a hole in the tang the size of the shaft. Then you drill holes part way through the handle material the diameter of the shoulder.
For a hidden tang knife:
Dry mount your handle to the hidden tang so it doesn't move. Drill a hole through both handle and tang in one pass. Then drill the handle material partially to depth the diameter of the shoulder.
Screw the two parts together fastening the scales to the tang. The ends of the bolts are slotted so you can use a screw driver on both ends to tighten the bolt. When you have it tight, you grind off the excess bolt material leaving a nice pin showing. You can also grind the shaft and/or threads to shorten them up. The shoulder and shaft are almost certainly longer than the thickest handle/tang combination.
NOTE: These are sold in single bolts. You will need to order 1 of these for each pin hole.
You are ordering by the single bolt.
